Pneumatic Linear Actuators

Pneumatic actuator baelz 373-P21

Versatile pneumatic linear actuator for control valves and ejectors with a max. stroke of 22 mm. Depending on the type, the actuator force ranges from 1020 N to 7590 N.

For control valves/ejectors up to DN 125
Fo: springs at the top pushing by spring force,
pulling by compressed air
Fu: springs at the bottom pulling by spring force,
pushing by compressed air
Stroke 8 / 12 / 16 / 22 mm
Spindle diameter 10 / 16 mm
Housing material aluminium (GD-AlSi9Cu3)
Diaphragm NBR (silicone also possible)
Weight from 5.3 kg

Download Datasheet

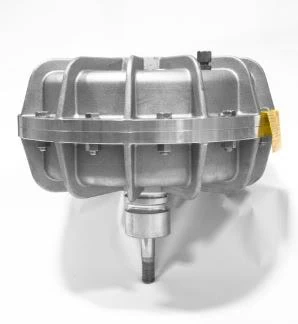

Pneumatic actuator baelz 373-P21


Pneumatic actuator baelz 373-P31

Pneumatic linear actuator for control valves and ejectors with a stroke of 44 mm. Depending on the type, the actuator force ranges from 2480 N to 10560 N.

For control valves/ejectors DN 150
Fo: springs at the top pushing by spring force,
pulling by compressed air
Fu: springs at the bottom pulling by spring force,
pushing by compressed air
Stroke 44 mm
Spindle diameter 22 mm
Housing material aluminium (GD-AlSi9Cu3)
Diaphragm NBR
Weight from 27.7 kg

Download Datasheet

Pneumatic actuator baelz 373-P31


Pneumatic actuator baelz 373-P41

Pneumatic linear actuator for control valves and ejectors with a stroke of 44 mm or 66 mm. Depending on the type, the actuator force ranges from 3765 N to 31920 N.

For control valves/ejectors from DN 150
Fo: springs at the top pushing by spring force,
pulling by compressed air
Fu: springs at the bottom pulling by spring force,
pushing by compressed air
Stroke 44 / 66 mm
Spindle diameter 22 mm
Housing material aluminium (GD-AlSi9Cu3)
Diaphragm NBR
Weight from 55.5 kg

Download Datasheet

Pneumatic actuator baelz 373-P41

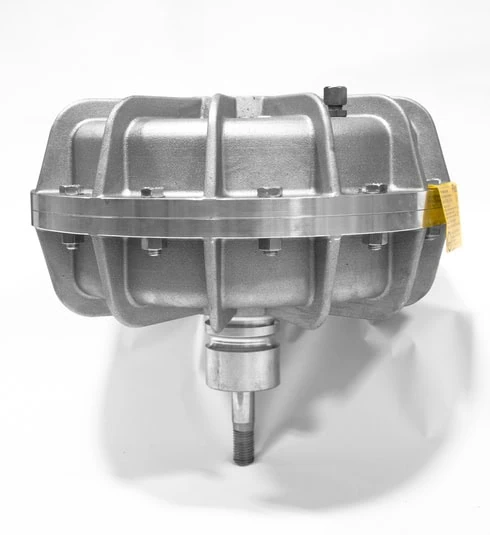

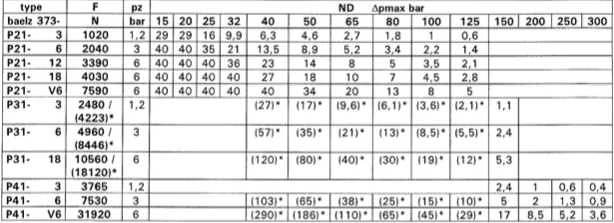

Pneumatic Actuator P31Pneumatic actuators convert pressurized gas into motion, enabling significant force to be channeled from relatively small variations in pressure to operating systems of all kinds. Offering precise, powerful response, these actuators are critical for flow system management and main control systems.

Pneumatic actuators join electric linear actuators, motorized rotary actuators, stepper motors, and hydraulic cylinders to round out a full catalogue of specialty actuator solutions at Baelz North America (Baelz NA).

Pneumatic Linear Actuators

Highly responsive pneumatic actuators draw energy from vacuums or compressed air, converting high pressure energy into rotary or linear motion in a control system. Because this design doesn’t require reserve power, it’s ideal for the quick response demands of main engine controls and flow systems. Its simplicity, durability, and straightforward operation make the pneumatic actuator desirable for high performance applications in a wide variety of industries.

Pneumatic linear actuators are often paired with valves and diaphragms for precise liquid and gas flow management. Known for safety, cost effective performance, and continuous reliability, the compact power of these components is also found in combustible engines, pumps, ventilation systems, switches, pneumatic nail guns, heating systems, air compressors, and countless other systems.

Pneumatic Linear Actuators at Baelz North America

Dedicated to building cost competitive, energy saving parts and engineered systems, W. Baelz & Sohn GmbH & Co. works with Baelz NA to bring custom components to North American customers. The team offers a full family of actuators in addition to heat exchangers, control valves and controllers, automation skid packages, assemblies, and more.

Baelz Automatic has stood for quality since 1896. We’re proud to provide this tradition of high quality backed by all the benefits of local service, with dedicated specialists and short delivery lead times to get the components you need, when you need them. For customization assistance or to learn more about our catalog, reach out to the team today.

Looking for Technical Data and Resources?

Browse our collection of eBooks, brochures, and data sheets.
