Electric Linear Actuators

Motorized actuator baelz 373-E07

Motorized linear actuator for control operation. For control valves/ejectors up to DN 125.

Thrust 2000 N 700 N
Dimensions Ø129 x 320 mm Ø129 x 320 mm
Weight 2.2 kg 2.2 kg
Actuating speed 6 or 18 mm/min 130 mm/min
Protection class IP 42 IP 42
Fail-safe function no no

Download Datasheet

Motorized actuator baelz 373-E07


Motorized actuator baelz 373-E45

Motorized linear actuator for control operation, with thrust-dependent limit switches. For control valves/ejectors up to DN 150.

Thrust 4000 N
Dimensions Ø180 x 365 mm
Weight 8 kg
Actuating speed 15 mm/min
Protection class IP 65
Fail-safe function no

Download Datasheet

Motorized actuator baelz 373-E45


Motorized actuator baelz 373-E65

Motorized linear actuator with emergency stop function and thrust-dependent limit switches. Available with fail-safe open or closed. For control valves/ejectors up to DN 125.

Thrust 1100 N 2000 N
Dimensions 309 x 230 x 133 mm 309 x 230 x 149 mm
Weight 5.6 kg 5.6 kg
Actuating speed 10 / 15 / 30 mm/min 10 / 15 / 30 mm/min
Protection class IP 66 IP 66
Fail-safe function yes, acc. to DIN EN 14597 yes

Download Datasheet

Motorized actuator baelz 373-E65

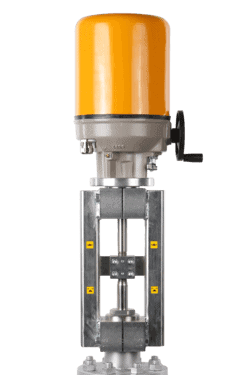

Motorized actuator baelz 373-E66

Motorized linear actuator for control operation, with load-dependent limit switches. For control valves/ejectors from DN 150 to DN 300. Input signal: 3 point

Thrust 8000 N 15000 N
Dimensions Ø188 x 329 mm Ø188 x 329 mm
Weight 13 kg 13 kg
Actuating speed 25 mm/min 22 mm/min
Protection class IP 65 IP 65
Fail-safe function no no

Download Datasheet

Motorized actuator baelz 373-E66


Motorized rotary actuator baelz 375-E42

Motorized rotary actuator with load-dependent and travel-dependent limit switches. Input signal: 3 point.

Torque 150 Nm
Dimensions 220 x 172 x 253/278 mm
Weight 7.5 kg
Actuating speed 60 s/90°
Protection class IP 65

Download Datasheet

Motorized rotary actuator baelz 375-E42


Actuators

Precise, powerful actuators support control systems for equipment in countless industries, from complex electronic systems and displays to the simplest machines. Heavy duty machinery in manufacturing, mining, oil and gas, and construction rely on specialized actuator models for the right balance of speed, thrust, power, and precision necessary for daily operation.

electric linear actuators infographic

Electric linear actuators are part of a large family of specialty actuator solutions at Baelz NA including pneumatic actuators, motorized rotary actuators, hydraulic cylinders, and stepper motors.

Electric Linear Actuators

Ready for easy mounting on either campers or butterfly valves, electric linear actuators offer versatile performance and robust power. These components enhance control, even in harsh or demanding environments, and are carefully engineered to offer heavy duty force with high performance precision, continuous reliability, and low maintenance.

Forklifts, hydraulic excavators, wheel loaders, and articulated lifts and dump trucks are just a few common applications for the stable, reliable lifting power of these components. Their lighter-duty counterparts can often be found in furniture, automotive, and manufacturing automation, as well as in custom robotics.

Electric Linear Actuators at Baelz NA

Baelz NA is proud to work with the team at W. Baelz & Sohn GmbH & Co. to furnish cost competitive, energy saving equipment parts throughout North America. We work to offer a full range of actuators as well as heat exchangers, engineered systems, controllers and control valves, automation skid packages, and more.

Since 1896, Baelz Automatic has stood for quality at its finest. As the official North American distributors, our team provides this high quality with the added benefits of local service and short delivery lead times. For specialized selection and customization assistance, reach out to our professional consultants today.
